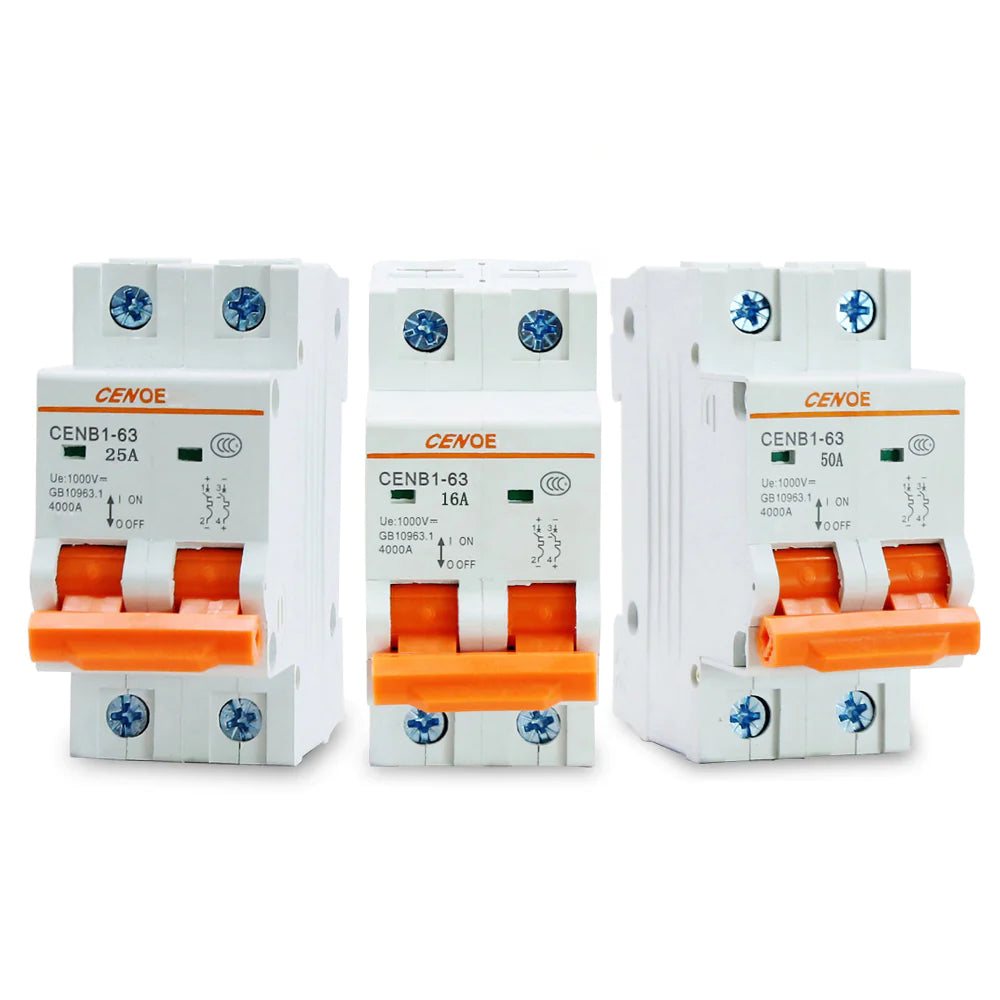

DC 2P Mini Circuit Breaker 32A
DC 2P Mini Circuit Breaker 32A
Regular price
R 323.92 ZAR
Regular price
Sale price
R 323.92 ZAR
Unit price
/
per
Electrical Features
• Rated Current (In): 32A
• Poles: 2-Pole
• Rated Voltage (Ue): 500VDC
• Rated Breaking Capacity: 6KA
• Thermo-Magnetic Release Characteristic: C (7~10)In
Mechanical Features
• Electrical Life: 4000 Cycles
• Mechanical Life: 10000 Cycles
• Contact Position Indicator: Yes
• Ingress Protection: IP20
• Safety Rating: IEC60947-2
Installation
• Terminal Connection Type: Cable / Pin-type Busbar / U-type busbar
• Terminal Size Top / Bottom for Cable: 25mm2 18-3AWG
• Terminal Size Top / Bottom for Busbar: 25mm2 18-3AWG
• Mounting: DIN Rail 35mm (Fast Clip device)
